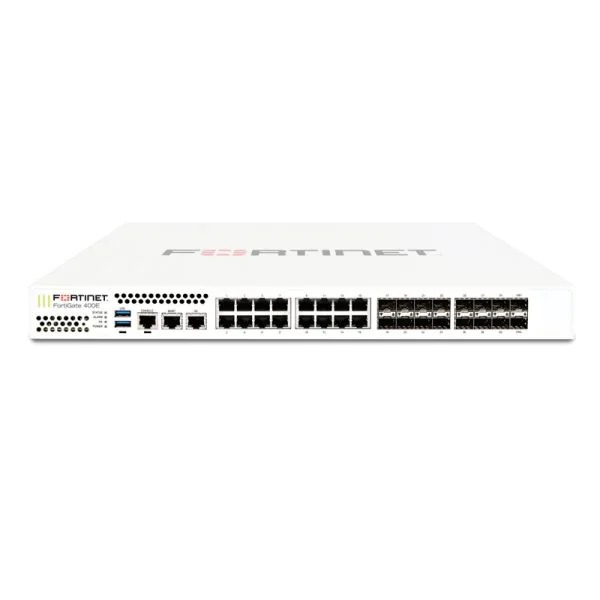

FG-400E, Fortinet FortiGate Firewall, 18xGE RJ45/16xGE SFP/SPU NP6 & CP9

Interfaces and Modules

Hardware Accelerated GE RJ45 Interfacess

16

Hardware Accelerated GE SFP Slots

16

GE RJ45 Management Ports

2

USB Ports

2

RJ45 Console Port

1

Onboard Storage

0

Included Transceivers

2x SFP (SX 1 GE)

System Performance — Enterprise Traffic Mix

IPS Throughput ²

7.8 Gbps

NGFW Throughput ^{2, 4}

6 Gbps

Threat Protection Throughput ^{2, 5}

5 Gbps

System Performance and Capacity

IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)

32 / 32 / 24 Gbps

IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP)

32 / 32 / 24 Gbps

Firewall Latency (64 byte, UDP)

2.14 μs

Firewall Throughput (Packet per Second)

36Mpps

Concurrent Sessions (TCP)

4 Million

New Sessions/Second (TCP)

450,000

Firewall Policies

10,000

IPsec VPN Throughput (512 byte) 1 000

20 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

2,000

Client-to-Gateway IPsec VPN Tunnels

50,000

SSL-VPN Throughput

4.5 Gbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

5,000

SSL Inspection Throughput (IPS, avg. HTTPS) ³

4.8 Gbps

SSL Inspection CPS (IPS, avg. HTTPS) ³

4,000

SSL Inspection Concurrent Session (IPS, avg. HTTPS) ³

300,000

Application Control Throughput (HTTP 64K) ²

12 Gbps

CAPWAP Throughput (HTTP 64K)

14.8 Gbps

Virtual Domains (Default / Maximum)

10 / 10

Maximum Number of FortiSwitches Supported

72

Maximum Number of FortiAPs (Total / Tunnel)

512 / 256

Maximum Number of FortiTokens

5,000

High Availability Configurations

Active-Active, Active-Passive, Clustering

Dimensions and Power

Height x Width x Length (inches)

1.75 x 17.0 x 15.0

Height x Width x Length (mm)

44.45 x 432 x 380

Weight

16.4 lbs (7.4 kg)

Form Factor

Rack Mount, 1 RU

AC Power Consumption (Average / Maximum)

109 W / 214 W

AC Power Input

100–240V AC, 50/60Hz

AC Current (Maximum)

6A

Heat Dissipation

730 BTU/h

Redundant Power Supplies (Hot Swappable)

Optional

Operating Environment and Certifications

Operating Temperature

32–104°F (0–40°C)

Storage Temperature

-31–158°F (-35–70°C)

Humidity

10–90% non-condensing

Noise Level

48 dBA

Airflow

Side and Front to Back

Operating Altitude

Up to 7,400 ft (2,250 m)

Compliance

FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6
